The Schedule Module helps you visualize and manage project timelines using multiple view options. Use these features to track progress, customize displays for different stakeholders, and create focused reports for clients and project teams.
Before you start
Your project schedule must be created and populated with activities.

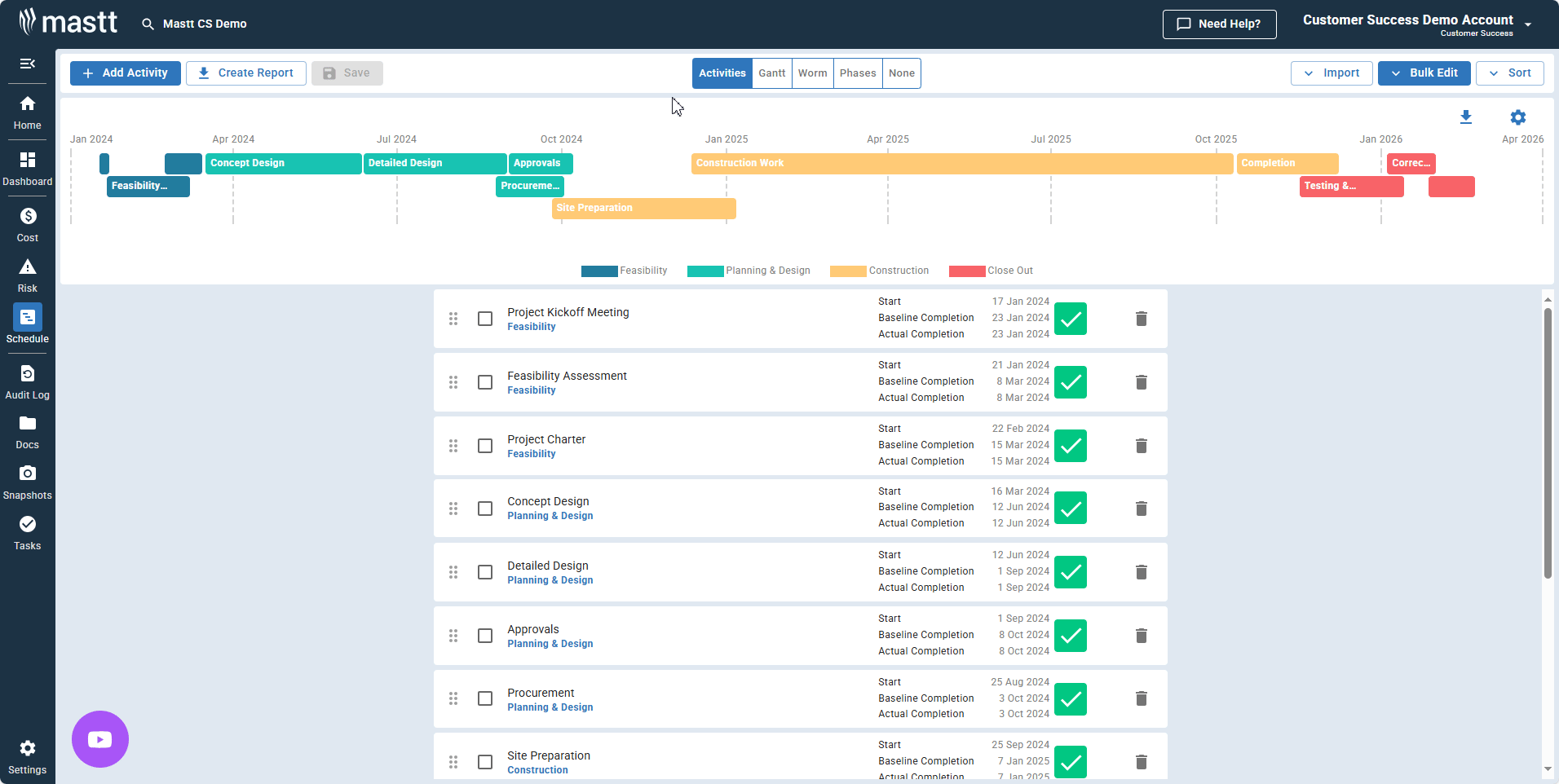

Choose your visualization
- Go to your project and navigate to the Schedule Module.
- Choose a view option.
| View | What it shows |
|---|---|
| Activities | List view of all scheduled tasks |
| Gantt | Traditional Gantt chart display |
| Worm | Visualize timelines |
| Phases | High-level phase overview |
Customize your schedule display
Configure Activities, Gantt, and Phases
- Click the gear icon in the top right corner of your chosen visualization.
- Hide specific activities or phases by clearing their checkboxes in the settings panel.
- Switch the current marker date and completion date lines on or off as required.
Configure Worm chart settings
- Adjust the width of the Worm bars using the width slider, and choose whether the Worm wraps onto multiple lines.
- Divide into phases to show one row per phase if preferred.
- Toggle the legend display on or off.
- Set date format to show months only or full date/month/year display.
Use icons for visual organization
Apply key milestone icons to mark critical project activities. Each activity can only have one icon.
- Select an existing activity to edit.
- Choose your desired icon from the options at the bottom of the edit pane.
- Click Save to apply the icon.
-png-1.png?width=510&height=60&name=icons%20(1)-png-1.png)
| Icon | When to use it |
|---|---|
| Key | Recommended for marking key milestones |
| Dollar | Financial milestones or cost-related activities |
| Exclamation Mark | Critical or high-priority items |
| Time | Time-sensitive activities |
| Trophy | Major project achievements |
| Rocket | Project launches or major deployments |
| Star | Highlighting important activities |
| Person | Person-dependent activities |
| Diverging Path | Decision points or diverging activities |
| Link | Connected or dependent activities |
Organize your schedule data
- Click the Sort button in the upper right corner of the schedule page.
- Choose your sorting preference:
- Start date
- Baseline completion date
- Planned completion date
- Baseline status
Create schedule reports
- Click Create Report in the left corner of the schedule page. The Schedule Report is generated automatically within the Dashboard.
- Customize the report to match your requirements.
Customize the dashboard
- Click the three dots in the upper right corner of any schedule tile.
- Select one of the customize options.
| Option | What it does |
|---|---|
| Settings | Configure tile display preferences (e.g., show or hide Activities, Phases, Delays, and more). |
| Edit | Modify tile content and layout. This action redirects you to the Schedule Module to edit the data. |
| Adjust Columns | Show or hide specific data columns |
| Filter | Apply filters to focus on specific activities |
| Reset | Return the tile to default settings |
| Duplicate | Create a copy of the tile |
| Download | Export the tile as an image |
| Remove | Delete the tile from the dashboard |
Troubleshooting and FAQs
What if icons aren't appearing in my schedule filters?
Ensure you've saved the icon assignment and refresh the dashboard view. Icons may take a moment to update across all visualizations.
Why isn't my schedule report generating automatically?
Verify your project schedule contains saved activities before creating the report. Empty schedules won't generate meaningful reports.
What if dashboard tiles show "No data available"?
Check that your schedule contains activities and review filter settings to ensure they're not excluding all data. Reset filters if necessary.
